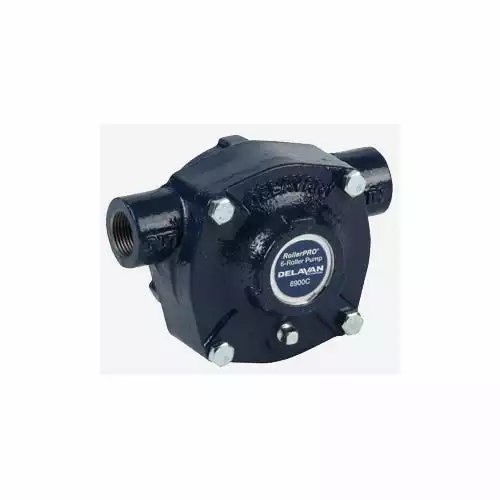

Delavan Roller Pro Cast Iron 6 Roller Sprayer Pump 6900C – Pumps

Pump

• Max Flow: 19.6 GPM (74.5 LPM)
• Max Operating Speed: 1000 RPM
• Type: 6-Roller design
• Max Pressure: 300 PSI (21 bar)
• Max Recommended Temperature: 140°F (60° C)
• Port Size: ¾” NPT (female) side ports
• Mounting: Base Mounted: 5⁄16 -18 UNC-2B (2 holes)
• PTO: Use torque bar and chain
• Shaft Size: 5⁄8” solid shaft Rotation: CCW (standard) (Shaft rotation is determined when looking at shaft end of pump)
• Weight: 9 lbs (19.8 kg)

Materials of Construction

• Housing: Cast Iron
• Rollers: 3⁄4” Ultra rollers (standard)
• Shaft Seals: Viton cartridge type lip seals
• Seal Ring: Viton
• Shaft & Rotor: Cast Iron
• Bearings: Permanently-lubricated, heavy-duty sealed bearings
